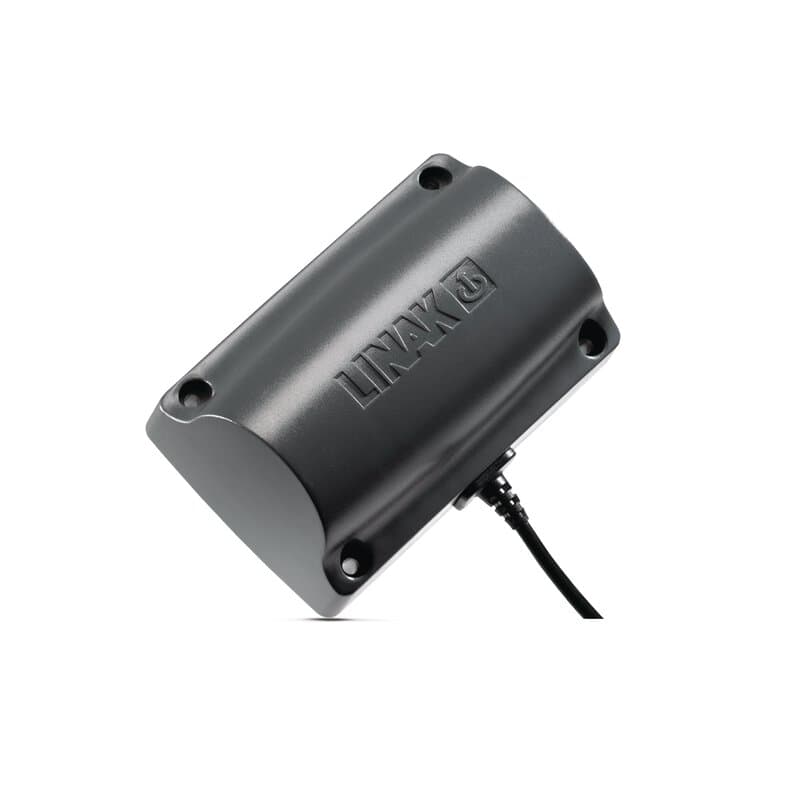

Massage Motor MD1
Comfort furniture applications such as leisure beds can benefit from adding massage. The HOMELINE® massage motor MD1 can be added to various LINAK systems TWINDRIVE® as well as linear actuator systems based on the CBH Advanced control box.
The LINAK system offers several advantages such as the same handset for both bed and massage, no extra control box, just plug and play – the massage motors are directly connected to the HOMELINE systems – no extra wiring under the bed, simple and easy mounting.
The system also features different modes, memory function and several mounting possibilities.
Got a question?
- Our team is ready to assist you with technical information, starting a project and more.
Contact now
2D Drawings
3D Models
No 3D drawings available.
Please contact your local LINAK representative for more information.
TWINDRIVE TD32 TD33 user manual
TWINDRIVE TD1 280 Microprocessor user manual
HOMELINE product overview
Assembling a single actuator system with massage motors
How to assemble a single actuator system with massage motors
The system consists of:
Single actuator(s)
Massage motor(s)
1 x Switch Mode Power Supply
1 x CBH Advanced
1 x Bluetooth® hand control
1 x Bluetooth® Adapter
- Connect single actuators in channels 1-2 for, e.g., back and leg adjustment
- Connect massage motors in channels 3A and 3B
- Plug the 2-pole DC cable into the CBH Advanced
- Connect the other end of the cable to the SMPS and connect the cable
- Connect to a power outlet
- Plug the Bluetooth® Adapter into the CBH Advanced
- Pair the hand control
- The system is now paired and ready for use
Create a system with the TD4 Advanced and the CBH Advanced combined
How to connect a system with the TD4 Advanced and the CBH Advanced
The system consists of:
1 x TD4 Advanced
1 x Switch Mode Power Supply
1 x CBH Advanced
1 x 2-poled DC cable
1 x Serial cable
1 x Bluetooth® hand control
Single actuator(s)
2 x screws
- Place the CBH Advanced onto the TD4 Advanced & use two screws to fasten it
- Plug the serial cable into the TD4 Advanced and channel A1 on the CBH Advanced
- Plug a 2-pole DC cable into the TD4 Advanced and channel DC on the CBH Advanced
- Connect the SMPS to the TD4 Advanced
- Connect single actuators in channels 1 and 2 for adjustment of, for example, the neck rest and foot rest.
- If needed, connect massage motors in channels 3A and 3B
- Connect to a power outlet
- Pair the hand control (press the two top buttons simultaneously)
- The system is now ready for setup
