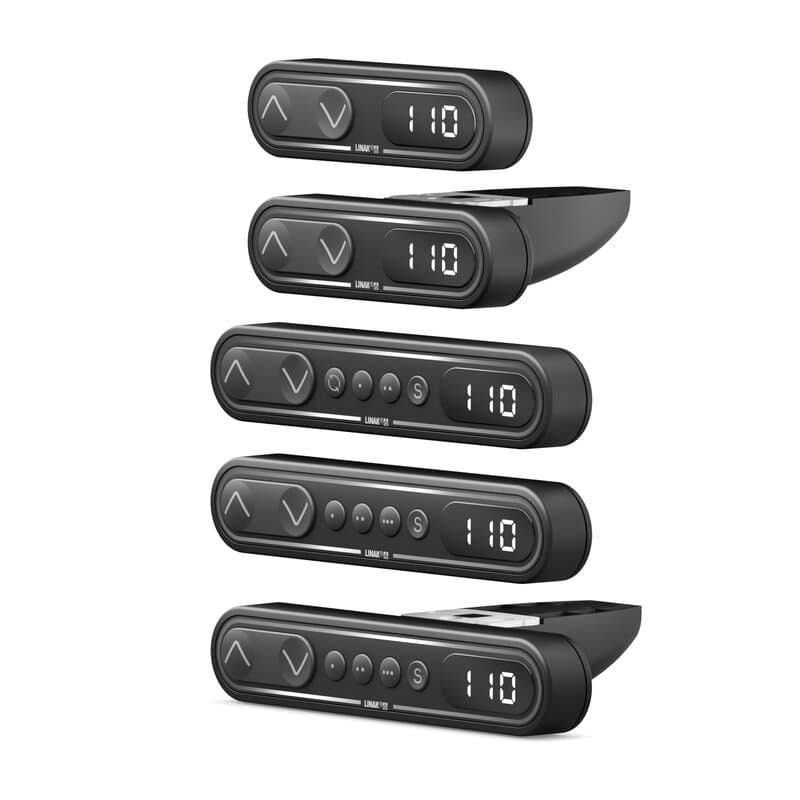

DPF with display

Watch and learn how to easily clean your LINAK desk panel/switch in this short instruction video: How to clean it; which cleaning agents to use; and, last but not least, what you need to pay attention to.

Clean your desk panel with a soft damp cloth. Universal cleaning detergents may be used.

For disinfection of the desk panel, use a 70 percent isopropyl alcohol either as a wipe or add a small amount to a soft cloth.

Warnings
The desk panel is not a sealed unit and there are electronics inside it. If liquids or moisture enter an opening, the PCB may be damaged, and the desk panel ruined.

Therefore:

• Avoid moisture penetrating any openings as this may damage the PCB inside the desk panel
• Avoid spraying the cleaning agent or disinfectant directly on the desk panel as moisture may penetrate openings and damage the PCB inside the desk panel
• Cleaning agents and disinfectants must not be highly alkaline or acidic (pH value must be 6 to 8), and they must not contain bleach or chlorine
• Do not use hand sanitizer gel as a cleaning agent

Alkaline and acidic cleaning agents may, over time, decompose the housing. Hand sanitizer gel may deposit on the desk panel buttons. Over time, the buttons may be stuck, or they may not work properly.

To watch our videos, please accept marketing cookies

The desk cannot drive up if it has not been initialized

If the display shows error code E01, the desk must be initialized.

How to initialize:

1. Press down key and drive to the lowest position. Hold the key until the desk stops completely.
2. Reactivate the down key and hold the key until the desk stops completely. Now the desk can drive up.

To watch our videos, please accept marketing cookies

To watch our videos, please accept marketing cookies

Correct the height in the display to the actual height of the desk by following the procedure shown in the video or in the text below.

How to set the height of your desk

Measure the actual height of your desk – from floor to the upper edge of the tabletop.

Set the height:

1. Press the up and down keys at the same time.
2. A figure appears in the display.
3. Use the up or down key to change the figure to the actual height.

Favorite positions for sitting and/or standing can be stored. Follow the procedure shown in the video or the instructions below.

How to store a position

1. Drive to the height you wish to store
2. Press ‘S’ and then the memory button

Your position has now been stored.

To recall your memory position, press the memory button until you reach the stored position.

To watch our videos, please accept marketing cookies

The desk cannot drive up if it has not been initialized.

If display: error code E01, the desk must be initialized.

How to initialize:

1. Press down key and drive to the lowest position. Hold the key until the desk stops completely.
2. Reactivate the down key and hold the key until the desk stops completely.

Now the desk can drive up.

To watch our videos, please accept marketing cookies

The desk must be initialized.

Follow the procedure shown in the video.

To watch our videos, please accept marketing cookies

Check: Is the power line connected to the control box?
Try/Solution: Try to connect a lamp or similar to the power outlet to check that the supply voltage is OK.

Check: Are all plugs mounted correctly on the control box and the leg?
Try/Solution: Check all connections.

Check: Is there any visible damage to the cables, controls, control box or legs?
Try/Solution: Damaged parts must be exchanged. Contact the company that sold you the desk.

The system has set a new end-stop outwards.

To erase this position, the desk must be initialized again. Follow the procedure shown in the video.
