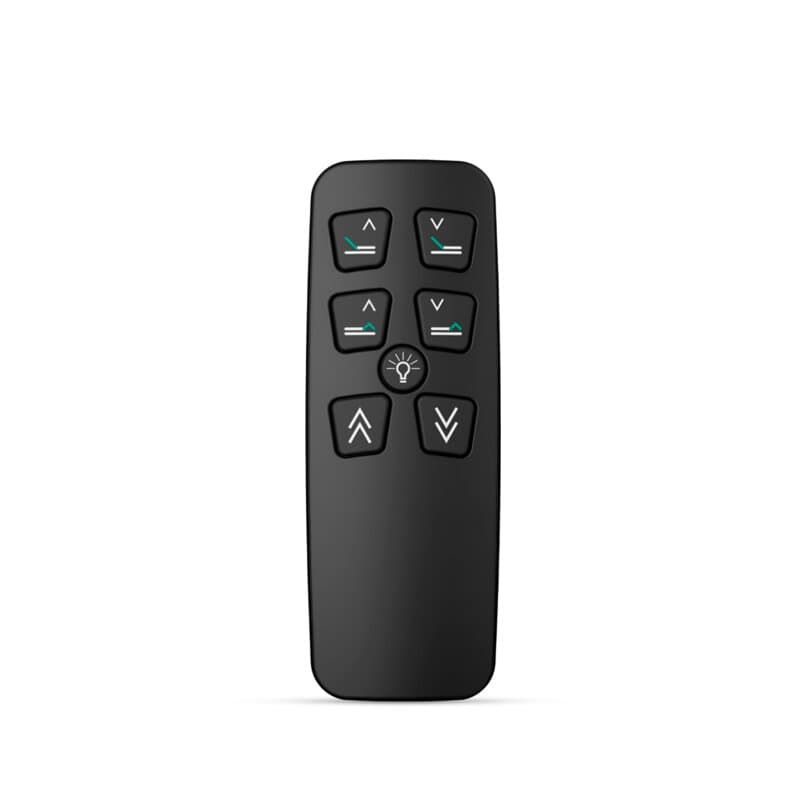

HC10 wireless

Learn how to pair wireless hand controls to the LINAK^® single actuator LA18 IC system for comfort beds using Bluetooth^® technology.

1. Connect the system to a power outlet
2. Pairing mode has started when the Under Bed Light starts flashing. It will run for 3 minutes
3. Press the top two buttons to pair the hand control
4. A long flash means successful pairing
5. The system is paired and ready for use
6. The system will continue to be in pairing mode until the previously mentioned 3 minutes elapse. Then the light will turn green continuously to show that the system is no longer in pairing mode

To watch our videos, please accept marketing cookies

If you need a new hand control for your adjustable bed, you need to contact the supplier from whom you purchased the bed.
This applies both in cases where you have lost your hand control, the hand control is broken as well as in cases where the battery has run out of power and the battery cannot be exchanged. The supplier will assist you in ordering a new hand control - LINAK does not sell spare parts directly to the person who owns the bed.

The LINAK hand control for an adjustable bed does not work

If you experience problems with the hand control for your adjustable bed, you need to contact the supplier from whom you purchased the bed.
LINAK does not sell spare parts directly to the person who owns the bed.

The handset needs to be set up with the TWINDRIVE TD1 280 (memory) underneath the bed.

Follow the instructions shown in the video or in the following steps:

1. Activate the reset key on the RFR box attached to the TD1.
2. Keep the reset key activated while pressing a random button on the handset. If there are more handsets, keep the reset key activated and press a random button on the other handset.
3. Your bed is now ready for use.

How to pair hand controls to a system with a CBH Advanced and a Bluetooth^® Adapter

1. Connect to a power outlet
2. Bluetooth^® Adapter flashes for 3 minutes to indicate pairing mode
3. To pair a hand control, press the two top buttons while the adapter is flashing
4. A long flash indicates successful pairing
5. All LINAK hand controls are paired by pressing the two top buttons

How to pair a hand control later

1. Start pairing mode again
2. Unplug from the power outlet and wait 10 seconds
3. Connect to a power outlet
4. Bluetooth^® Adapter flashes for 3 minutes to indicate pairing mode
5. Repeat pairing procedure on the other hand control
6. The system is now paired and ready to use

How to set up a double bed for simultaneous drive with the TD4 or TD5 Standard

The system consists of:
2 x TD4/TD5 Standard
2 x power cables
1 x Bluetooth^® hand control

1. Connect the two dual actuators TD4/TD5 to a power outlet
2. The Under Bed Light on both TD4/TD5 dual actuators starts to flash to indicate pairing mode
3. Pair the hand control (press the two top buttons simultaneously)
4. A long flash indicates successful pairing
5. Now both dual actuators TD4/TD5 Standard are paired to one hand control

To watch our videos, please accept marketing cookies

My LINAK hand control has run out of battery life

Unfortunately, for some hand controls it is not possible to change the batteries. If your battery in these hand controls runs out of power, you will have to purchase a new hand control. You can do this by contacting the vendor who sold you the bed.

LINAK does not sell spare parts directly to the person who purchased the bed.

1. Drive the LA27 to the outer position (without interruption until it stops)
2. Release the button
3. Drive the LA27 to the inner position (without interruption until it stops)
4. Release the button

The system has now been initialized.

To watch our videos, please accept marketing cookies

1. Plug the Bluetooth Adapter into the powered up TD3.
2. The Adapter is now in pairing mode. A blue blinking LED will indicate this.
3. Take the Bluetooth hand control and press the Back “Up” and “Down” buttons at the same time. Now the light will display a long blink and indicate that the control and the actuator are paired up.

1. Activate the reset key on the TD3. The bed drives to a flat position. Keep the key pressed until the motor stops completely.
2. Release the reset key.
3. Reactivate the reset key on the TD3.
4. Keep the reset key activated while pressing a random button on the handset.
5. If there are more handsets, keep the reset key activated and press a random button on the other handset.

Your bed is now ready for use.

To watch our videos, please accept marketing cookies

1. Set the TD4 in pairing mode by connecting it to a power outlet.
2. The product is now in pairing mode. The Under Bed Light will blink to indicate this.
3. Take the Bluetooth hand control and press the Back “Up” and “Down” buttons at the same time. Now the light will display a long blink and indicate that the control and the actuator are paired up.

To watch our videos, please accept marketing cookies

Check: Is the power outlet connected to the TWINDRIVE TD1?
Try/Solution: Try to connect a lamp or a similar object to the power outlet to check that the supply voltage is OK.

Check: Are all plugs mounted correctly on the TWINDRIVE TD1?
Try/Solution: Check all connections.

Check: Is there any visible damage to the cables?
Try/Solution: Damaged parts must be exchanged. Contact the company that sold you the bed.

Check: Is the power line connected to the TWINDRIVE TD3?

Try/Solution: Try to connect a lamp or similar to the power outlet to check that the supply voltage is OK.


Check: Are all plugs mounted correctly on the TWINDRIVE TD3?

Try/Solution: Check all connections. Use the cable relief on the TD3 to make sure the cable does not fall out. Follow the procedure shown in the video or the instructions below.

To watch our videos, please accept marketing cookies

The actuator adjusting the neck function needs to be initialized. Follow the instructions shown in the video or in the following steps:

TD3 AND LA27 - How to initialize the motor system

1. Push the down button on the actuator.
2. Drive the actuator until it has reached the inner position and stops completely.
3. Release the key on the handset.
4. Reactivate the down key on the actuator and keep it activated for approx. 5 sec.
5. You can now drive the actuator outwards.

The system has now been initialized.
