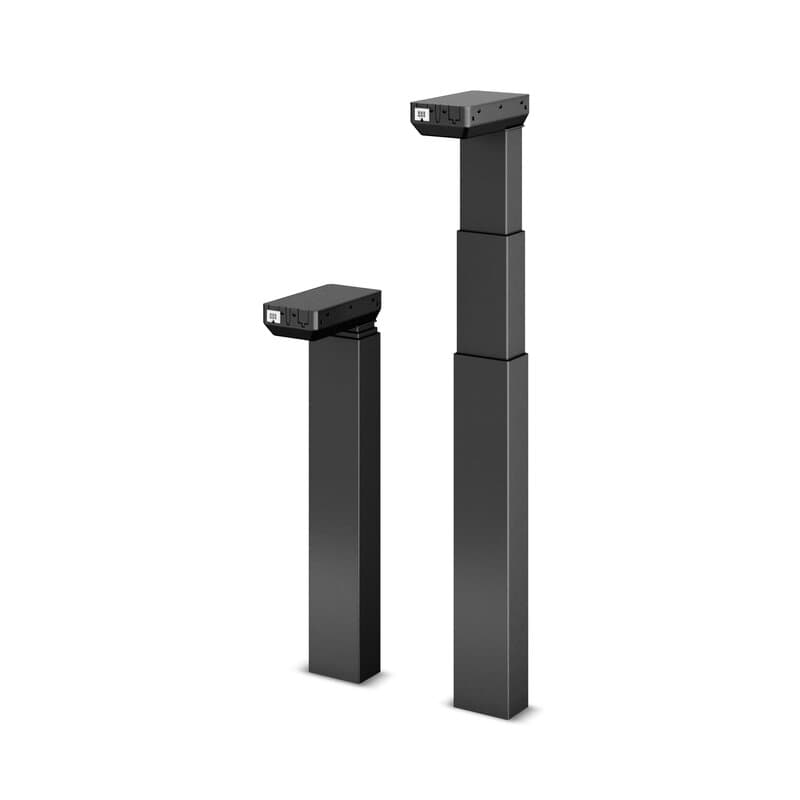

DL21

The DESKLIFT™ DL21 is a compact three-part lifting column, perfect for a wide range of different height-adjustable desk applications; from industrial and technical work stations to sit-stand office desks. The three-part construction ensures a short installation dimension combined with a long stroke length, making the DL21 the optimal choice for the desk no matter the height of the person using it.

The DL21 has a compact motor housing, which is almost invisible in the tabletop construction, and the column is very sturdy. The DL21 has the same outer dimensions (60 x 90 mm) and motor-housing mounting holes as the two-part DL20 column, which makes them fit the same top frame and foot constructions, including the Kick & Click™ top frame. The DL21 is a PLUS™ column ensuring a clean design without visible gliding pads. The column is available in several colors, and trim rings for optimized appearance are available in black, grey, or white for the PLUS™.

The broad DL21 product program offers various options such as:

• PIEZO™ (collision protection) minimizing the risk of damage to a desk caused by collision with an obstacle
• high-speed variant for fast height adjustment
• versions prepared for Click-on Feet
• versions for bench solutions

The DL21 system is controlled by a DESKLINE ® control box (CBD). The control box ensures optimal parallel drive and a pleasantly low noise level. The DL21 can be used as a single column, with 2, 3 or 4 columns in parallel systems, or up to 16 columns in multi-parallel systems. A Desk Sensor™ 1anti-collision dongle can be plugged into the control box to limit material damage to a desk or an object in case a collision occurs during driving of the desk.
