LINAK actuator system for recliners. When comfort is your bottom line.
Avoid quality cases in electric adjustable recliners
Easily configure recliner actuators on-site
LA10

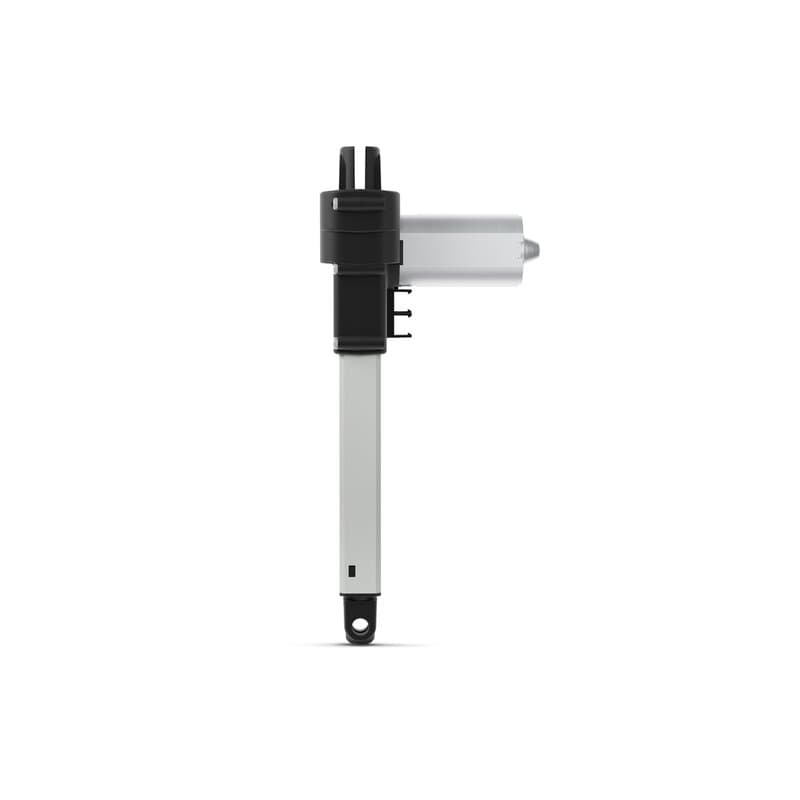

This electric linear actuator was designed especially for adjustment systems in recliners.
The LA10 is compact and discreet, fitting in perfectly where space is limited. The serial-connection setup makes traditional control boxes redundant and helps minimize the number of cables in the system overall. This helps neutralize common root causes of quality issues.
Serial connection enables the LA10 actuators to ‘share intelligence’. This means that the order/sequence of daisy-chained actuators is irrelevant. The second they are connected they know their position in the chain. Only one cable connects these actuators to each other, conveying power as well as data needed to run the system. With this ‘power line communication’, it is also irrelevant which actuator you choose to plug into the BLE2DC plug needed to create a wireless connection to your control unit.
Finally, the linear actuator LA10 comes with its own configurator solution. This expands flexibility and allows you to reconfigure the actuator yourself when your furniture design changes, and thereby save time to market.
Got a question?
- Our team is ready to assist you with technical information, starting a project and more.
Contact now
LA10 system user manual
Actuator systems for recliners
HOMELINE product overview
Recliner - How do I assemble the LA10 system for recliners without a battery?
Learn how to assemble the actuator LA10 system for recliners without a battery.
The system in the video consists of the following:
- Single actuator LA10
- Mounting bracket MB001 (mounting - this is described in Mounting the control unit for LA10)
- Charging point CP002
- Connection cable
- Safety release cable
- Power cable
- SMPS006
- Charging cable
- Plug the Bluetooth® dongle into the actuator LA10 - you know it is in place when you hear a click.
- Connect the two actuators LA10 with the connection cable.
- Connect the Charging Point to the actuator LA10 using the remaining free slot.
- Connect the power cable to the power supply SMPS006.
- Plug the charging cable into the SMPS006 and connect the safety release cable..
- Connect the safety release cable to the charging point.
- You now have an assembled system for recliners
For more information about the LINAK® Recliner system, please visit the recliner application page.
Recliner - How do I buy a new remote control for my recliner with a LINAK system?
You have to reach out to the place you purchased your recliner. LINAK® does not sell the controls directly to consumers.
Recliner - How do I know if my recliner has a LINAK system?
Learn how to see if your recliner has a LINAK® system.
You can usually see if a system is produced by LINAK by looking at the SMPS or under the batteries in the hand control.
Recliner - How do I mount the BP10 in a recliner?
Learn how to mount the different versions of the hand control BP10 and the matching mounting bracket in a recliner with LINAK® systems.
To mount the Control unit you will need:
- Mounting bracket MB001
- One of the BP10 controls. This video shows the BP12.
- A screwdriver
- Four screws. Countersunk 45°, flat head, max. ø3.5 mm.
- Place the bracket in the recliner where you want it to go. Use the screws to mount it firmly.
- Place the metal plate in the bracket and click the top part in place on top of the metal plate. You will hear a click when it is in place.
- Place the control unit in the bracket.
For more information about the LINAK Recliner system, please visit the recliner application page.
Recliner - How do I mount the Charging Point in a recliner?
Learn how to mount the charging points CP002 and CP003 in a recliner with LINAK® systems.
- To mount the CP002 and CP003 you will need to drill a hole into the surface where you want to use it. For CP002 drill a 24 mm hole and for the CP003 drill a 30 mm hole.
- From the back, push the ring over the charging point until it is fastened tight to the fabric. You will hear a click.
- The inner ring of the Charging Point will light up when connected to power to indicate charging.
For more information about the LINAK Recliner system, please visit the recliner application page.
Recliner - How do I pair the control BP10 to a recliner?
Learn how to pair the control BP10 to a recliner with a LINAK® system.
- (Re)connect the system to power.
- Press the two top buttons of the control unit at the same time.
- Your control is now paired to the system and is ready to be used.
For more information about the LINAK recliner system, please visit the recliner application page.
