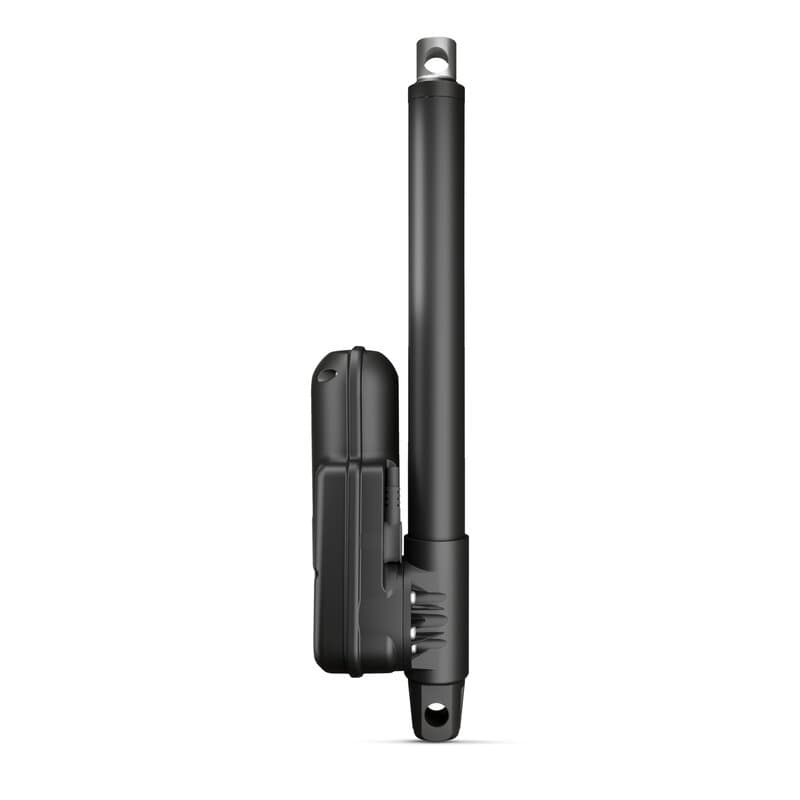

LA42

The LA42 is a strong and flexible actuator with a push load of up to 7,000 N and a dynamic load pull of 3,500 N, offering stable and reliable performance. The motor housing offers the ability to customize the motor direction, allowing designers more options for placement in applications. With an IPX6 rating, the LA42 enables a high level of hygienic cleaning.

The LA42 is flexible in terms of its unique configuration possibilities and can be linked in systems with several LA42 actuators via the Power Junction Box PJB4. This actuator can be used with various PCP 2.0 control boxes like CO71 and LIFT50™, where PCP communication allows the LA42 to maintain its actuator channel regardless of which PCP port it is connected to.

Strong benefits of using LA42 are:

• Multi-directional angling of motor housing
• Innovative system connectivity via PCP 2.0
• IPX6
• Strong and fast actuator in a small form factor
